Washing machine dimensions: The ideal size for your laundry space

Laundry is an essential and regular part of any household routine. This task can become easy if you have the right kind of washing machine. Your washing machine’s dimensions are as important as its style and features. Knowing the right standard dimensions makes it easier to fit the washing machine into your laundry space. From small washing machine sizes for small families to heavyweight models for large families, it is necessary to know the ideal match for your washing machine. In this article, we will dive into the standard dimensions or sizes of different types of washing machines, like front-load, top-load, etc. Through this, you will get a clear idea of the best washing machine for your home.

Standard dimensions of a washing machine

In this table, you can take a look at the standard height, depth, and width across different types of washing machines:

Types of washing machines Height (in cm) Width (in cm) Depth (in cm)
Fully automatic front-load 85 – 90 59 – 60  55 – 65
Fully automatic top load 90 – 105  55 – 65  60 – 70
Semi-automatic 90 – 105  75 – 90  45 – 55
Small size 80 – 85 50 – 60  45 – 55
Medium size 85 – 90  59 – 60  55 – 65
Large size 85 – 95  60 – 70  60 – 75

Standard dimensions of different types of washing machines

Based on the operation

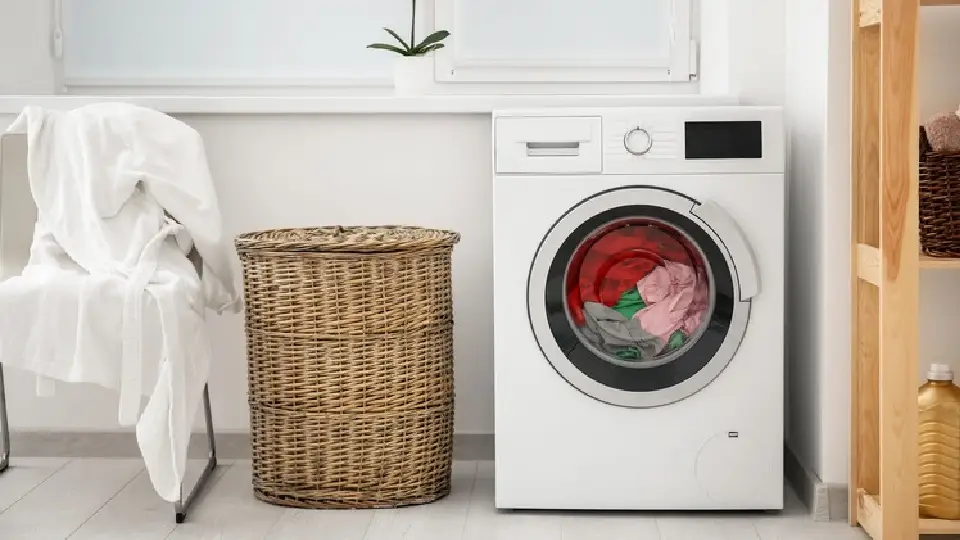

Fully automatic washing machine

Fully automatic washing machine
A fully automatic washing machine with a button

Image Source: housedigest.com

Fully automatic washing machines come with different washing modes that can be activated with just a button press. You can select the programmes required. Finally, after selecting the programmes, you simply need to switch them on. These are of two types – front load and top load.

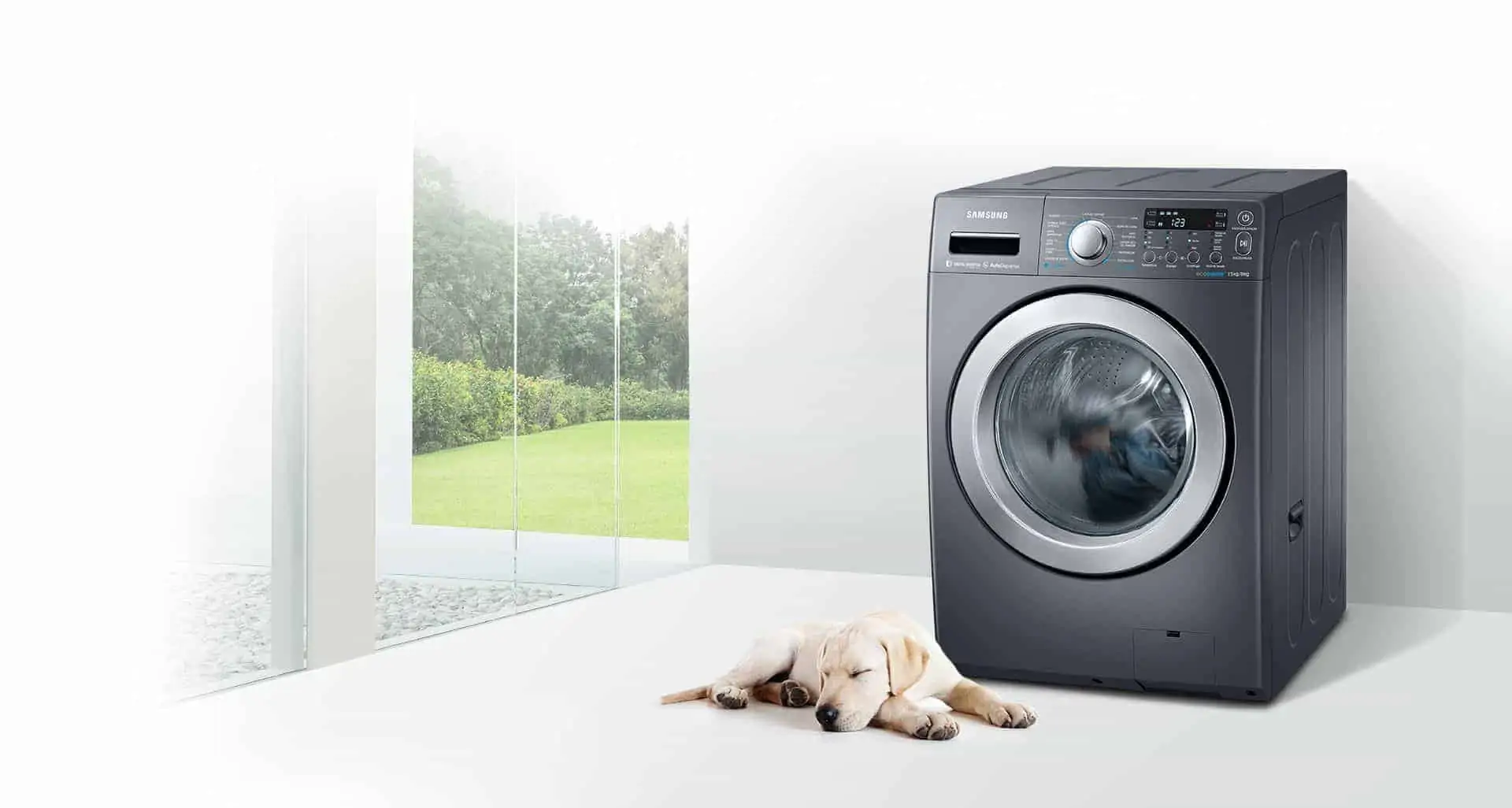

Front-load automatic washing machine
Fully automatic washing machine
Front-load washing machine having standard dimensions

Image Source: pinterest.com

A front-load washing machine fits under standard-size countertops because of its ideal dimensions. In this type of washing machine, the door opens from the front, and therefore, front clearance is needed. For the front-load washing machine dimensions, its standard width is 59 to 60 cm, depth is 55 to 60 cm, and height is 85 cm.

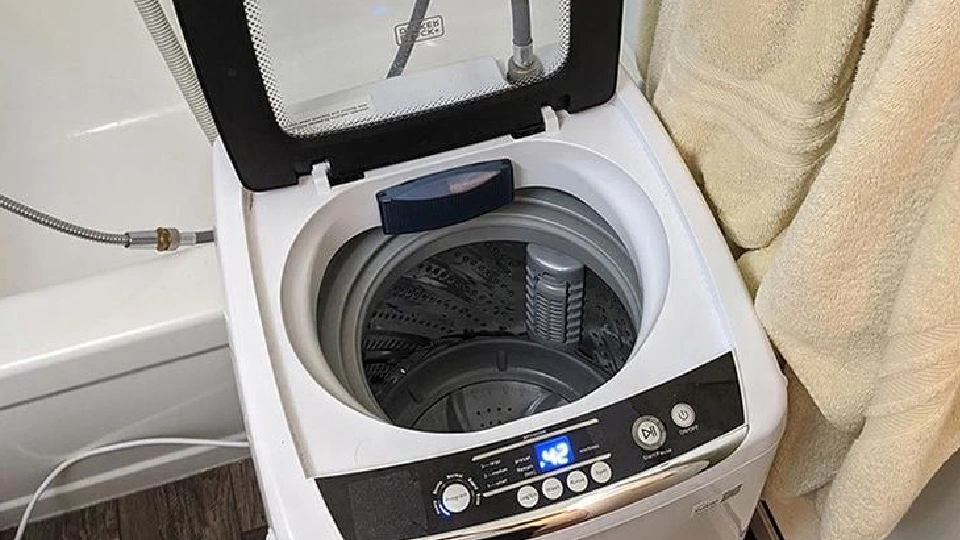

Top-load automatic washing machine
a top load washing machine
Top-load washing machine

Image Source: pinterest.com

The size of a top-load washing machine is narrow but tall compared to front-load washing machines. Its lid opens upwards, and hence, we need an overhead space. A top-load washing machine size is 90 to 105 cm in height, 55 to 65 cm in width, and 60 to 70 cm in depth.

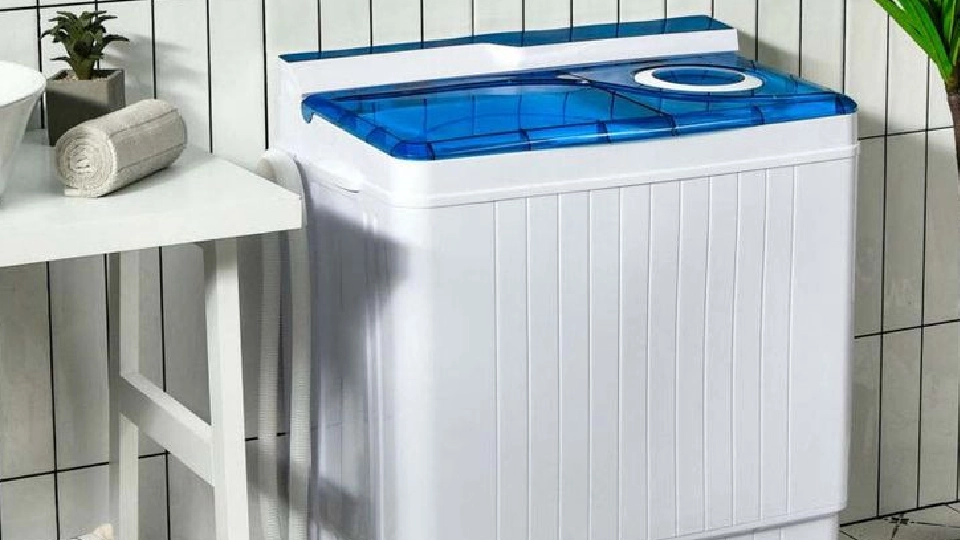

Semi-automatic washing machines

laundry area white space
Semi-automatic washing machine

Image Source: eletriclife.com

Semi-automatic washing machines have 2 tubs, one for washing and the other for spinning. The garments will be transferred to the spin tub once the washing cycle is complete. They are wider than fully automatic machines. Its ideal width is 75 to 90 cm, depth is 45 to 55 cm, and height is 90 to 105 cm.

Also read: Household appliance companies | Top home appliance brands in India 2025

Based on the size

Small or compact washing machine

a compact laundry appliance setup
A compact front-load washing machine

Image Source: tcl.com

Small or compact washing machines have a standard capacity of 5 to 7 kg. Its width is 45 to 60 cm, depth is 45 to 55 cm, and height is 70 to 85 cm. These machines are ideal for apartments or homes with fewer laundry needs.

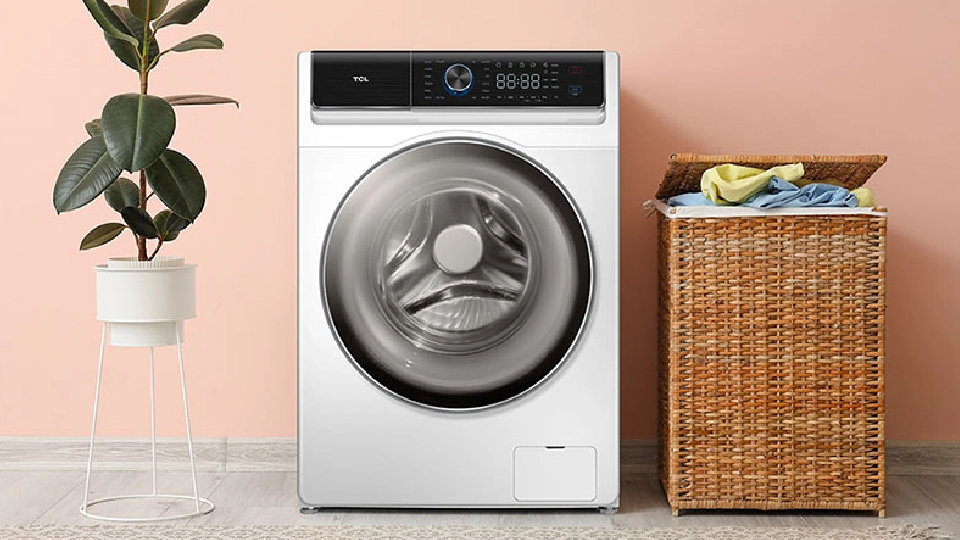

Medium-sized washing machine

medium sized electrical appliance for household
A standard front-load washing machine

Image Source: haierindia.com

Also known as standard washing machines, medium washing machines have a capacity of 7 to 9 kg. Its width is 59 to 60 cm, its depth is 55 to 60 cm, and its height is 85 cm. Moreover, this is appropriate for families consisting of 2 to 4 people.

Large washing machine

a large sized washing machine
A large-capacity washing machine

Image Source: reliant.co.uk

Large or oversized washing machines are ideal for big families and intensive laundry needs. Their capacity can go beyond a maximum of 12 kg. These machines have a width of 60 to 70 cm, a depth of 65 to 75 cm, and a height of 85 to 95 cm.

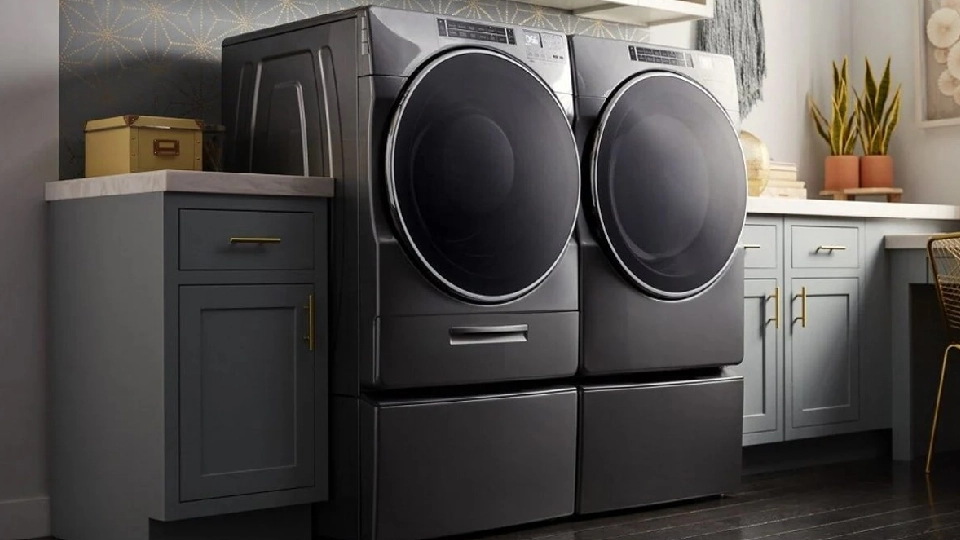

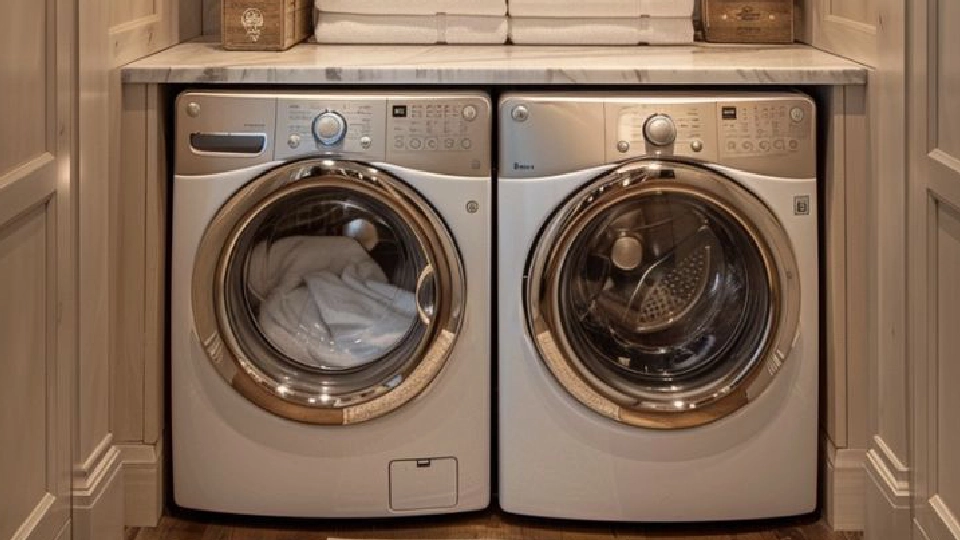

Dimensions of a washer and dryer

washer and dryer combo, small washing machine size
A washer and dryer combo

Image Source: pinterest.com

A washer and dryer functions as both a washing machine and a dryer in a single unit. Additionally, they come in different arrangements:

  • Side-by-side washer and dryer: A compactor and dryer are placed side by side. They need additional room, but are practical for bigger families. Its width is 120 to 130 cm, depth is 55 to 70 cm, and height is 85 to 105 cm.
  • Stacked washer and dryer: The washer and dryer units are stacked vertically to save space in small laundry areas. Its width is 59 to 60 cm, depth is 55 to 65 cm, and height is 160 to 180 cm.
  • Compact washer and dryer: A space-saving washer and dryer is perfect for apartment living and offers both washing and drying functions in a single unit. Its width is 45 to 55 cm, depth is 50 to 60 cm, and height is 70 to 85 cm.
  • All-in-one washer and dryer: An all-in-one washer and dryer is a single unit that is ideal for small spaces. These have a width of 59 to 60 cm, a depth of 55 to 60 cm, and a height of 85 cm.
  • Large-capacity washer and dryer: Large-capacity washers and dryers have a width of 120 to 130 cm, a depth of 55 to 70 cm, and a height of 85 to 105 cm for both units. The washer and dryer are placed beside each other. Overall, they’re convenient for families that require separate units for washing and drying.
Also read: Dimension of kitchen sink: Standard sizes & best products in India

Measuring tips before buying a new washing machine

Ensure your washing machine is the right size for your laundry area by following these easy steps:

  • The connections: Before measuring, verify that the power source and water supply can adequately connect to the washing machine.
  • Leave ventilation space: There must be at least 2 to 3 inches of space around the washing machine for air passage and heat control.
  • Determine the height: Start by determining the height of the area allocated for the washing machine. Ensure there is sufficient clearance, particularly for top-loading models.
  • Assess the width of the space: A minimum width of 2 to 2.5 feet is necessary.
  • Evaluate the space’s depth: Maintain a depth of 2 to 3 feet by measuring the location where the washing machine will be situated.

Whether you’re furnishing a new home or upgrading your laundry space, selecting the right size for your washing machine will ensure convenience and efficiency. Thus, by understanding your laundry needs, you can ensure that the washing machine you choose suits your lifestyle in the long run.

FAQs

How much space do we require behind washing machines?

Generally, you need a space of 6 inches to fit in the hose, venting, electrical cord, and floor trim. Extra space provides enough ventilation and keeps the connections secure. Extra space behind a washer is important for its operation and longevity. However, some manufacturers recommend a space of 5.9 inches to keep it minimal.

What is the typical space we require for a washing machine?

Typically, a standard washing machine requires a space of 24 to 30 inches wide, 24 to 30 inches deep, and 33 to 42 inches tall. For proper clearance, maintain a gap of 2 to 3 inches on the back and sides to ensure sufficient ventilation. Finally, to provide adequate access for the door, leave a space of 1 to 2 feet.

What elements should I keep in mind when purchasing a washing machine?

When you buy a washing machine, consider the most important elements, such as the type of washing machine, loading capacity, energy efficiency, washing programmes, available space, safety features, laundry needs, available budget, warranty, and lifespan. Besides, the overall dimensions of your washing machine matter when installing it in your laundry space.

Can we customize washing machine dimensions to fit compact spaces?

Yes, washing machines can be customized to fit into a space that you require. Small-capacity models, shallow-depth models, stackable washer-dryers, and integrated washer-dryer units are some examples. Compact washing machines are designed specifically for smaller spaces with a capacity of 6.5 kg. Generally, portable washing machines are the most preferred option for compact spaces.

Can we install washing machines under the countertops?

Yes, we can install washing machines under countertops, especially under kitchens. Before installation, ensure that the countertop’s height, width, and depth are sufficient to accommodate the washing machine underneath. Also, there must be adequate space for ventilation and clearance. However, top-load washing machines may not be preferable in this case.

Do washing machines need extra space for ventilation?

Indeed, washing machines need extra space for ventilation regardless of their type. Keep at least 1 inch clearance on all sides and a minimum of 5.9 inches at the back. Extra space prevents your washing machine from overheating and maintains optimal performance. Generally, it is better to have more clearance for hot climates or high usage.

Are compact washing machines less effective compared to full-size machines?

Compact washing machines are effective for small loads and delicate items. They serve a gentler wash cycle, save space, and are energetically efficient. However, they’re less effective when compared to full-size machines. Full-size washing machines have a great capacity for holding a larger load, and they provide efficient laundry management.
