Hygiene doesn’t have to be expensive. This is why SCHELL designs a cost-effective range of bathroom fittings. SCHELL touchless wash basin fittings such as the Walis E taps range has unique and innovative features.
About the Product

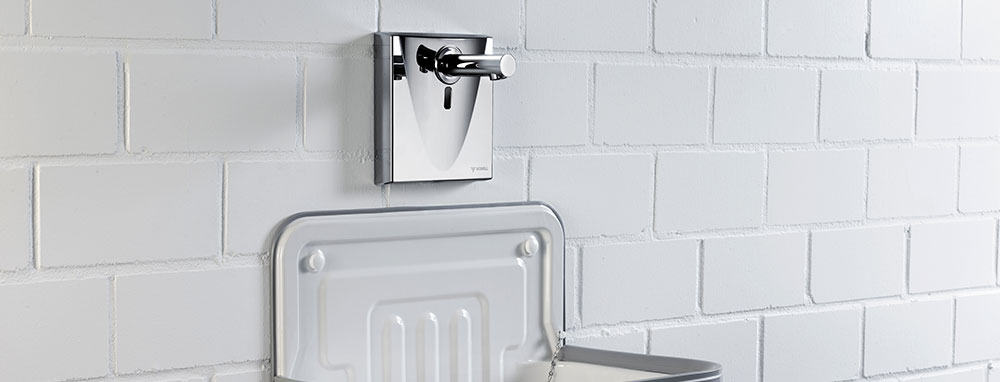

With the new touchless fittings, SCHELL meets optimal hygiene standards requirements in public areas. The robust metal design is vandal-proof and equipped with protection against deliberate blocking of the IR sensor, for example through chewing gum. Regular stagnation flushes help maintain normal operation in the building. SCHELL Walis E is available in the options of washbasin mount and wall spout fitting.
Product Description
Irrespective of which requirements are placed on bathroom washbasin fittings or wall-mounted draw-off fittings in public sanitary rooms the Walis E comprehensive product range of Sensor basin taps and automatic faucets from SCHELL leaves no desires even in its price range. So, what all solutions have in common: extremely robust, water-saving technologies, attractive design, and numerous hygienic equipment features, e.g. contact-free actuation or integrated stagnation flushing. SCHELL Walis E is available in the options of washbasin mount and wall spout fitting. With the new touchless fittings Walis E, SCHELL offers optimal hygiene standards requirements in public areas
Specifications of SCHELL Walis E Sensor taps
- Material: Water path out of brass conforms to German drinking water regulation, front panel out plastic
- Surface: Chrome
- Dimension: DN 15 G 1/2 ext. thread
- Spout Length- 130 mm
Features of SCHELL Walis E Sensor taps
- Front panel with infrared sensor window
- Waterpath with 6 V solenoid valve
- Installation frame with infrared sensor electronics, programmable
- 6 V battery compartment, protection class IP65
- 4x AA alkaline battery 1.5 V
- Wall outlet with flow regulator (theft-safe)
- Weight: 1.69 kg/Piece
- Packing unit: 1
- Additionally, mounting frame with fastening material
Technical Data
- Flow volume: max. 5l/min. pressure Independent
- Flow pressure: 1 to 5 bar
- Water temperature max. 70 °C (80°C permissible for 10 min./day)
Adjustable hand programming of SCHELL Walis E Sensor taps
- Firstly, sensor range of taps: short, medium, Long
- Secondly, stagnation flush program (duration of flow 30 s, 24 h after last use/ every 24 h)
- Thirdly, the flow time of continuous flush for thermal disinfection (duration of flow 300 s / duration of flow 120 s)
- Finally, cleaning stop- 60 s
Adjustment via SWS/SSC software
- Max. Flow Time – 1 – 360 s
- Post-On Time -0.6 – 60 s
- Stagnation Flush Time – 5 – 600 s
- Stagnation Flush Intervals – 1 – 240 h
- Flow Time For Thermal Disinfection – 15 – 600 s
- Duration Of Flow- 15 – 600 s
- Energy Saving Mode Activated- 1-254 h
- Cleaning Stop – 60-360 s
So, call us now to buy automatic bathroom & wash basin sensor taps & faucets at the lowest price for domestic or commercial use!
For more details, contact below:
-
- WhatsApp: +91 9811057547 (Message only)
- Email: support@buildingandinteriors.com
Brand Info
SCHELL
For more than 80 years, the SCHELL bathroom fittings brand has been the first option in the industry. Whether it’s for hand washbasins, showers, WCs, or urinals, we’ve got you covered. Whether or not angle valves are regulated. SCHELL fittings belong in all situations where sturdy, hygienic, and resource-efficient solutions remain required, whether it’s for connecting heating, gas, or home equipment like a washing machine. Particularly in sanitary rooms that remain used by a large number of people, such as public, semi-public, and commercial sanitary rooms.
SCHELL, one of the initial points of contact for high-quality fittings for building technology, is also based here. The uncompromising quality, innovative goods, and, in particular, the strive for excellent and sustainable solutions is what our Olpe family firm is known for among fitters, dealers, planners, architects, and builders.
When you choose SCHELL, you are choosing high-quality “Made in Germany” items. And they all come from the same place. Starting with an idea and ending with a finished result. Technically inventive, creatively demanding, and produced by 450 highly motivated employees in two state-of-the-art facilities in Olpe.
Schell Products
System solutions
Are you looking for a sanitary drinking water system? We have the system you need, whether you have one or 300 fittings.
Washbasin
SCHELL’s wide product range leaves no wishes, regardless of which criteria remain imposed on washbasin fittings or wall-mounted draw-off fittings in public sanitary rooms.
Shower
Showers remain frequently used in public, semi-public, and commercial sanitary facilities. Also, it doesn’t matter if you’re in a new or renovated building.
Water closet
WC flushing systems are becoming more common in public, semi-public, and business restrooms.
Schell urinal
Both concealed and exposed mounting options are available. Whether it’s contactless or manually operated.
Mounting modules
As a complete system provider, we naturally supply mounting technology for all applications.
Appliance connection fittings
Appliance connection connections from SCHELL remain no longer required for safe water handling in the bathroom, kitchen, cellar, garage, or garden.
Schell angle regulating valves
The brand Schell invented the angle valve. Also, fitters have relied on the expertise of Europe’s market leader in angle valve technology for many decades.
Heating fittings
SCHELL brand offers a wide range of heating bathroom fittings, including appliance isolating valves, filling and drain connections, and radiator fittings.
