Stiebel Eltron underfloor heating system
Stiebel eltron underfloor heating system

Stiebel Eltron is known to manufacture various innovative renewable products for residential and commercial establishments. One such amazing product is the Stiebel Eltron underfloor heating system.

About the Product

Stiebel Eltron underfloor heating system is a clean and environmentally responsible heating method with high heating output from modest dimensions.

[vvsmustread]

View Datasheet 1:
View Datasheet 2:
View Datasheet 3:

Product Description

The specifications of the Stiebel Eltron underfloor heating system with electric heating mats are as follows-

  • Ideal for the bathroom
  • Even temperature distribution across the
  • Independent of the existing heating system
  • Suitable for new build, renovation, and modernization thanks to low installed height
  • With infinitely variable temperature selection
  • Additional temperature controller required
  • It is easy to install
  • Heating mats are suitable for -level showers
  • The mat will do the job in the spring and autumn
  • Quicker than most other heating systems and delivers the heat in more precise amounts
  • Low running costs due to high energy efficiency



"Stiebel
Underfloor Heating system by Stiebel and Eltron

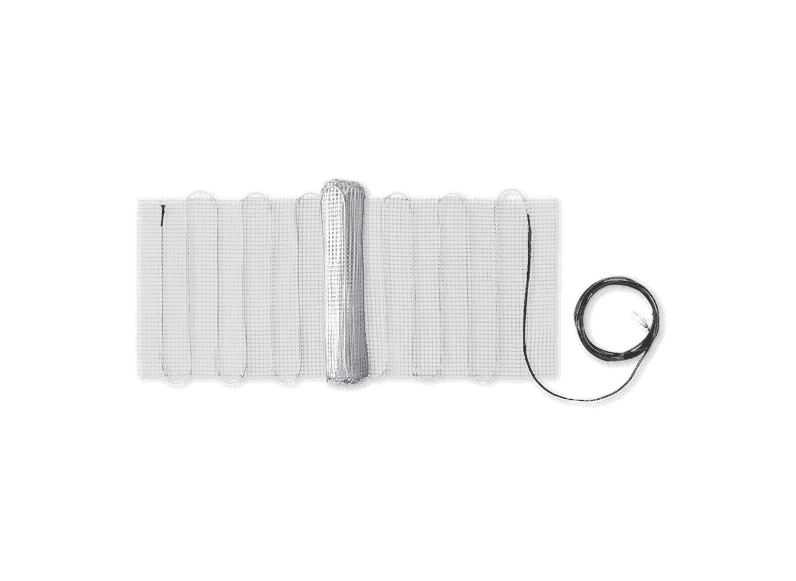

FTT C Underfloor mat



Stiebel Eltron electric heating mats
underfloor electric mat for heating system FTT 160 C



Features

  • The electric underfloor heating mat system
  • Output: 160 W/m²
  • Short heat-up time
  • Even temperature distribution across the
  • Self-adhesive fabric mesh with a sewn-on heat conductor
  • Particularly easy to engineer and install
  • Small conductor spacing: 6.3 cm
  • Only one connecting cable (4 m long)



Types

1. FTT 160 C

  • Part no.: 234287
  • Power connection: 1/N/PE~230 V
  • Connected load: 160 W
  • Length: 2 m
  • Surface: 1 m.sq.

2. FTT 240 C

  • Part no.: 234288
  • Power connection: 1/N/PE~230 V
  • Connected load: 240 W
  • Length: 3 m
  • Surface: 1.5 m.sq.

3. FTT 320 C

  • Part no.: 234289
  • Power connection: 1/N/PE~230 V
  • Connected load: 320 W
  • Length: 4 m
  • Surface: 2 m.sq.

4. FTT 400 C

  • Part no.: 234290
  • Power connection: 1/N/PE~230 V
  • Connected load: 400 W
  • Length: 5 m
  • Surface: 2.5 m.sq.

5. FTT 480 C

  • Part no.: 234291
  • Power connection: 1/N/PE~230 V
  • Connected load: 480 W
  • Length: 6 m
  • Surface: 3 m.sq.

6. FTT 640 C

  • Part no.: 234292
  • Power connection: 1/N/PE~230 V
  • Connected load: 640 W
  • Length: 8 m
  • Surface: 4 m.sq.

Othe variants available: FTT 800 C, FTT 960 C, and FTT 1120 C



FTM B Underfloor mat

stiebel eltron
heating system FTM 150 B





Features

  • Output: 150 W for short heat-up time
  • Installed height only approx. 4 mm
  • Only one connecting cable (5 m long)
  • Self-adhesive fabric mesh, heat conductor attached with adhesive strips
  • Quick and easy to install
  • Even temperature distribution across the
  • Heat conductor spacing ≤ 9 cm



Types

1. FTM 150 B

  • Part no.: 234548
  • Power connection: 1/N/PE~230 V
  • Connected load: 135 W
  • Length: 2 m
  • Surface: 1 m.sq.

2. FTM 225 B

  • Part no.: 234549
  • Power connection: 1/N/PE~230 V
  • Connected load: 220 W
  • Length: 3 m
  • Surface: 1.5 m.sq.

3. FTM 300 B

  • Part no.: 234550
  • Power connection: 1/N/PE~230 V
  • Connected load: 300 W
  • Length: 4 m
  • Surface: 2 m.sq.

4. FTM 375 B

  • Part no.: 234551
  • Power connection: 1/N/PE~230 V
  • Connected load: 380 W
  • Length: 5 m
  • Surface: 2.5 m.sq.

5. FTM 450 B

  • Part no.: 234552
  • Power connection: 1/N/PE~230 V
  • Connected load: 470 W
  • Length: 6 m
  • Surface: 3 m.sq.

6. FTM 600 B

  • Part no.: 234553
  • Power connection: 1/N/PE~230 V
  • Connected load: 650 W
  • Length: 8 m
  • Surface: 4 m.sq.

Othe variants available: FTM 750 B, FTM 900 B, and FTM 1050 B



FTB 160 Underfloor heating system

underfloor system with electric mats
heating system – FTB 160



Features

  • Independent of the existing heating system
  • Suitable for new build, renovation, and modernization
  • Easy and quick installation
  • With variable temperature selection
  • Heat conductor is sewn onto a fabric mesh
  • Heat conductor spacing 4.5 cm
  • Output: 160 W/m²



Type

  • Part no.: 234834
  • Power connection: 1/N/PE~230 V
  • Connected load: 160 W
  • Length: 4 m
  • Surface: 0.8 m.sq.



So, call us now to buy an energy-efficient heating system for or commercial setups!
